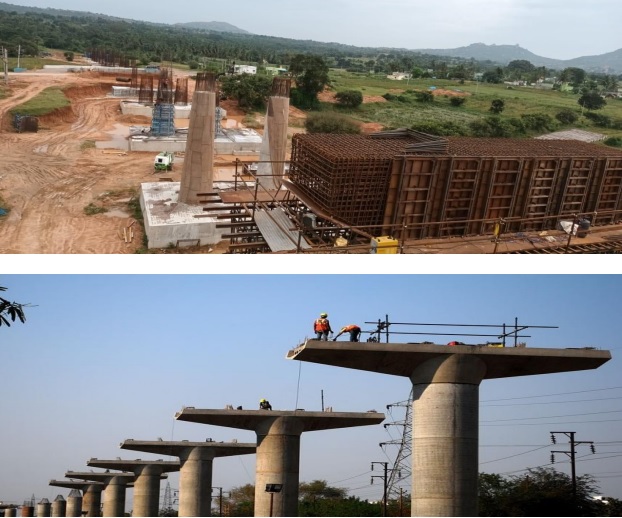

Pier Cap Casting

A pier foundation is a collection of large diameter cylindrical columns to support the superstructure and transfer large super-imposed loads to the firm strata below. It stood several feet above the ground. It is also known as “post foundation.

Pier caps transfer the loads from the superstructure to the piers. They hold the bridge girders on bearing pads and disperse the loads from the bearings to the piers. Bridges with piers will all have pier caps to transfer the load from the superstructure.

The upper or bearing part of a bridge pier; usually made of concrete or hard stone; designed to distribute concentrated loads evenly over the area of the pier.
