Standard Penetration Test

The standard penetration test is an in-situ test that is coming under the category of penetration tests.

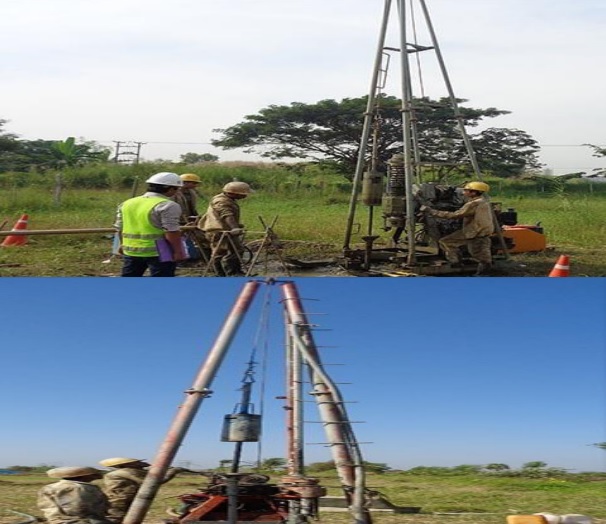

The standard penetration test, commonly known as 'SPT', was developed to provide geotechnical engineering properties for foundation design purposes. The test is carried out within a borehole. The results can be used to determine the relative density, bearing capacity, and settlement of granular soil.

The sampler is 51 mm O.D. (outside diameter) and it is driven into the soil with a 63.5 kg weight having a free fall of 760 mm. The first 150 mm of soil is neglected. The next 300 mm of soil constitutes the test. The number of blows for that 300 mm becomes the N-value.
